Thông số sản phẩm

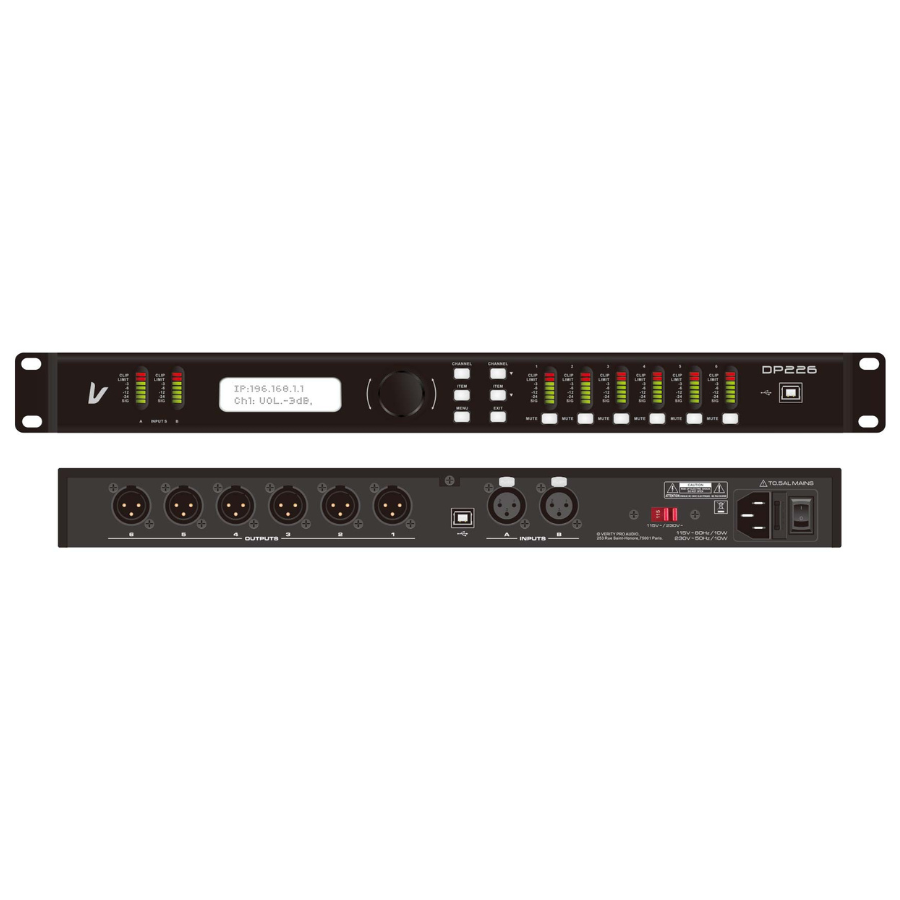

| Model | DP226 | |
|---|---|---|
| Inputs | Two ways Balanced inputs | |
| Outputs | Six ways unbalanced outputs | |
| Input impedance | ≥ 10kΩ | |
| Outputs impedance | ≤ 60Ω | |
| Output gain | From +12dB to -50dB, 0.25dB increment | |
| Input gain | From +12dB to -50dB, 0.25dB increment | |
| Other specifications | ||
| Frequency response(-0.3dB) | 20Hz – 20kHz | |
| THD+N | ≤ 0.05% | |
| Max delay | 5ms | |
| Dynamic range | ≥80dB | |
| Converts Frequency (high pass/ low pass) | 20Hz – 20kHz, 1Hz increment | |
| Centre Frequency (high pass/ low pass) | 20Hz – 20kHz, 1/36 octave (19980 positions) increment | |
| Minimun Load Inpedance | 600Ω | |
| Maximum Output Level | +9dBu (600 ohms load) | |
| Filter Gain | From +12dB to -50dB, 0.25dB increment | |
| High Pass & Low Pass Filter | Q value 0.2-0.25 adjustable, 0.1 increment/ 10 bands/1 filter each output channel, open and close |
|
| Frequency Response | Bessel/ Butterworth 6/12/18/24dB each octave, and Linkwitz-Riley 24dB/ octave | |
| Protect Function | System can be set code which can prevent unauthorized person operation. | |
| Product dimensions(mm) | 482 x 125 x 44.5(1U) | |
| Package dimensions(mm) | 525 x 195 x 110(1U) | |
| G.W | 3kg | |
| Power Consumption | ≤10W | |
